Details

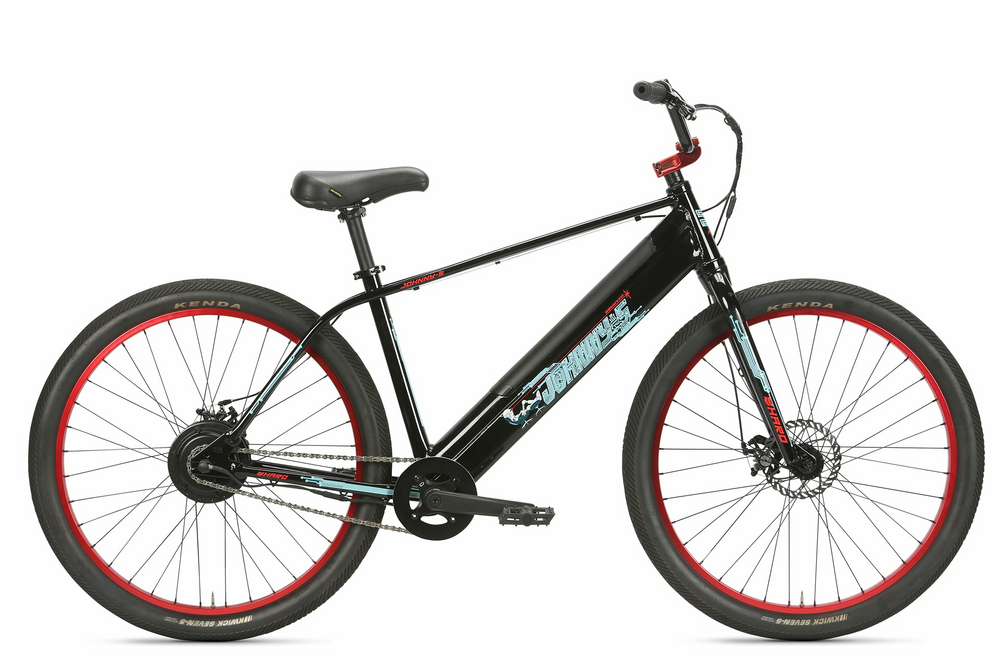

Our Johnny 5 electric was designed to take the bike life culture into the future, acknowledging our BMX heritage, yet ignoring all previously set boundaries of what a wheelie bike should be. Whether you're on a ride out, or just cruising around town, the Johnny 5 opens the door to longer rides where hills really don't matter. Throw a leg over one, hit the throttle and let the good times roll!
Size | A. Head Angle | B. Seat Angle | C. Top Tube | D. Seat Tube | E. Chainstay | F. BB Height | G. Stand Over |
---|---|---|---|---|---|---|---|
27.5 | 67° | 73° | 25.3" (645mm) | 17.9" (457mm) | 17.25" (440mm) | 11.3" | 28.75" (730mm) |
Specs
Motor | Bafang 500w |
---|---|
Pedals | FPD PC 9/16" |
Battery | Internal 50 cell, 48V, 672WH |
Fork | Full chromoly 1-1/8" - 1-1/5" tapered fork with 3/8" dropouts |
Hubs | F: Sealed bearing, High flange, 36H female axle front hub / R: 0 |
Stem | Baseline forged 48mm reach |
Chain | KMC 410 Z chain |
Frame | 6061-T6 Heat treated aluminium twin top tube frame. |
Tires | Kenda "Kwick Seven" 27.5" x 2.4" |
Brakes | Promax Mechanical Disc Brake, 160mm Rotor |
Saddle | Haro Johnny 5 saddle |
Wheels | 27.5" Alloy 36h, Double Wall |
Headset | FSA 1 1/8" X 1.5" Sealed Bearing |
Crankset | 3-pc Hollow forged aluminium with tapered square spindle - 170mm |
Seatpost | Alloy, 30.9 x 350mm |
Chainrings | 36t Alloy Chainring with aluminium chain guard |
Handlebars | Haro 5" Legends 2-piece bar |
Tape/Grips | Baseline Flangeless |
Brake Levers | Promax 2.5 finger |
Bottom Bracket | Euro square tapered pedal assist |
Accessories & Extras | Bafang LCD Display, 5 power settings; Thumb Throttle |
Cassette/Freewheel | 15t Freewheel |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Black / 27.5-inch | 691840228800 | 22880 | 54322880 |
