Details

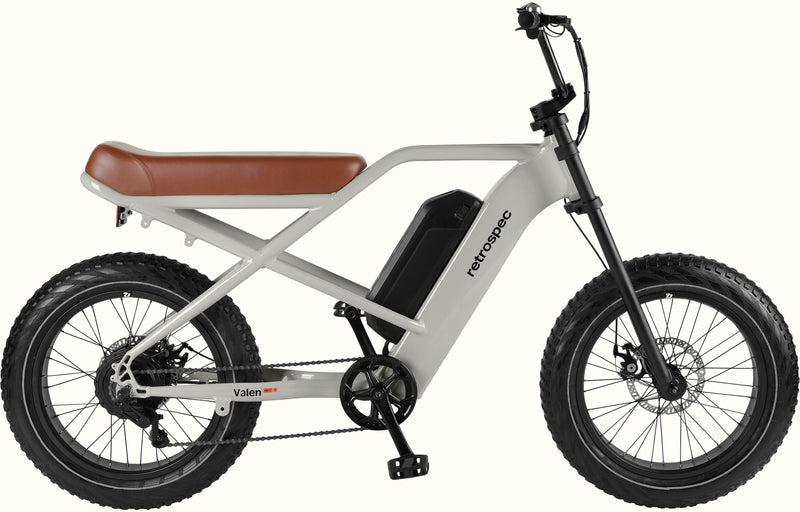

Gain the confidence to unlock a whole new world of adventures with Valen Rev 2. This moto-style fat tire electric bike combines modern e-power, reliable durability, and all-terrain versatility in a sleek, high-performance package. Accept the challenge to explore uncharted territory with puncture-protected 4” fat tires for tackling any terrain and a powerful 750W motor & 500Wh/48V battery that can propel you up to 49 miles per charge. This fat tire ebike offers as much or as little support as you want on your adventures with your choice of full throttle, 5 Pedal Assist levels, or good ol’ pedaling to get you wherever you’re heading. Ride around town, into the sunset, or off the beaten path – Valen Rev 2 is down for anything.
Features:
- 20mph Top Assisted Speed
- Up to 49 Mile Range
- 750W Planetary Geared Hub Motor
- 48V/500Wh LG Li-ion Battery
- Tektro Mechanical Disc Brakes
- 4” Puncture Protected Fat Tires
- 350 lbs Recommended Weight Limit
Quick Access to Controls
Handlebar-mounted, easy-read LED control panel indicates battery level and controls Pedal Assist and Walk Mode.
On- or Off-Bike Charging
This ebike’s middle-mounted battery can be charged both on and off the bike. LG 21700 cells enhance the battery capacity so it can store more energy and offer up to 49 miles of range when fully charged.
Off-Road Ready
20x4.0 fat tires are made with heavy-duty construction, full-coverage puncture resistance, and a reflective safety strip, offering stable, comfortable, and smooth rides on any terrain.
Custom Comfort Saddle
The elongated moto-style saddle is comfortable, spacious, and able to accommodate riders up to 350 lbs.
Quiet, Consistent, Confident Braking
Tektro mechanical disc brakes with semi-metallic pads & 180mm rotors offer reliable stopping power in any weather, so you can brake confidently.
Simple Riding, Low Maintenance
A single speed drivetrain promotes easy riding and is low maintenance.
Easy-Change Rear Wheel Removal System
Retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to take a look under the metaphorical hood.
UL2271 & UL2849 Safety Certified
This ebike has been tested and certified to UL2271 and UL2849 standards for electric bicycles.
Specs
Frame | Valen 6061 hydroformed aluminum with, external downtube battery and replacable derailleur hanger. |
---|---|
Fork | Rigid Triple Clamp Steel fork. |
Rims | 20" single-wall aluminum 36H, for disc brake |
Hubs | Front: Aluminum bolt-on with 17mm axle nuts. 36 hole |
Spokes | 13G w/brass nipples |
Tires | 20x4" Fat MTB with puncture protection and reflective sidewall |
Bottom Bracket | Sealed cartridge |
Crankset | 3-Piece aluminum w/steel 38T chainrings with double alloy chainguard |
Cassette/Freewheel | Single Speed 18T |
Chain | KMC SIngle Speed |
Brakes | Tektro lever with Tektro mechanical caliper with 180mm rotors and semi-metalic pads |
Handlebars | Steel BMX |
Tape/Grips | Lock-on comfort grips. |
Stem | BMX Die Cast Alloy 22.2mm clamp |
Headset | 1-1/8” semi-integrated threadless |
Saddle | Retrospec Custom Moto |
Pedals | PP plateform with non-slip tread |
Accessories & Extras | Aluminum chainstay mounted kickstand, 40MM bolt pattern |
Motor | 750W rear hub |
Battery | 500Wh/48VLG 21700 cells; Charge on or off bike |
Controller/Display | Left mounted color LED |
Charger | 48V/2A |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Matte Graphite / One Size / 26-Inch | 840216314702 | 5784 | 52400105 |
